MELT BLOWN PRODUCTION EQUIPMENT

Nippon nozzle is capable to build high performance Melt blown equipment, such as launching a new production line, designing to increase production capacity etc. We can design and produce entire device, and customize everything to meet your demand. We have experience to build machine, application include filter mask , medical use, bio-medical material and small-scale of equipment for R&D purposes. Please feel free to contact us if you have any demand.

Customize and Design
a whole production Melt blown equipment

Range of customization

  • Polymer Auto-supply system (automation)
  • Dryer
  • Extrusion devices
  • Screen changer
  • Gear pump unit
  • T-die (Single polymer & Conjugate type)
  • Distributor
  • Spinneret
  • Collection device (Conveyor / Drum)
  • Winding machine
Application Industrial filters, Masks,Sound absorbing materials, Automotive filters, HEPA filter etc.

Flow chart of Meltblown Pilot equipment

Conveyor type

Drum type

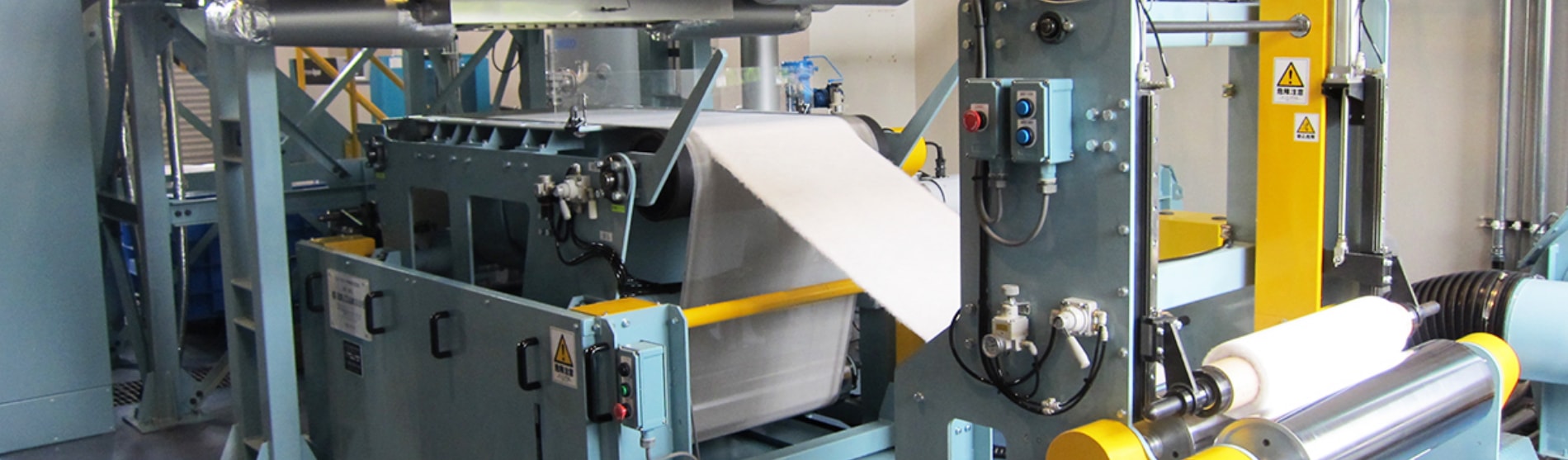

Equipments’ line up (Testing Machine In our plant)

Design best production equipment
According to customers’ requirements

“We have 3 different types of Meltblown equipment to support customer’s product development, product verification before the instration and prodct improvement.All of the Melt-blown equipment is order-made. We design the machines according to customer requirements, from individual devices to all specifications. Please feel free to contact us if you have any demand.”

Vertical type,
Conjugation type

Machine is capable to made widely product, start from nano fibers to Bi-component nonwven

Spinneret line up Hole Pitch Number of Holes Spinneret Angle
Φ0.15 0.25 1801 60
Φ0.2 0.36 1251 60
Φ0.25 0.4 1126 60
Φ0.3 0.45 1001 60
Extruder Single-screw extruder Φ32mm×2sets
Throughput MAX40kg/hour(while using 2sets extruder)
Spinning temperature MAX380℃
Maximum pressure 10Mpa (Usually by 4Mpa)
Air flow MAX6㎡/min
Conveyor speed MAX60㎡/min

Horizontal type,
durm collecting type

Smaller testing machine. The short residence of material design, it’s capable to test with high add value polymer such as PLA etc.

Spinneret line up Hole Pitch Number of Holes Spinneret Angle
Φ0.1 0.5 451 60
Φ0.2 0.5 451 60
Φ0.3 0.5 451 60
Extruder Single-screw extruder Φ25mm
Throughput MAX4kg/hour
Spinning temperature MAX380℃
Maximum pressure 4MPa
Air flow MAX3.2㎡/min
Conveyor speed MAX20㎡/min

Horizontal type,
conveyor collecting type

The most compact machine in the line up and it’s capable to test with high add value polymer such as PPS etc.

Spinneret line up Hole Pitch Number of Holes Spinneret Angle
Φ0.1 0.25 601 60
Φ0.7 1.16 130 60
Extruder Single-screw extruder Φ25mm×2sets
Throughput MAX4kg/hour
Spinning temperature MAX380℃
Maximum pressure 4MPa
Air flow MAX2.39㎡/min
Conveyor speed MAX60㎡/min
